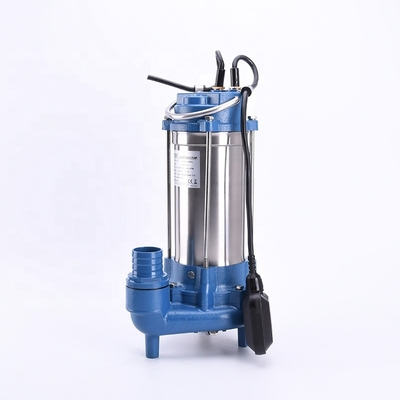

The product is a sewage pump with a cutting device for sewage transportation in industrial, agricultural and construction sites. Fit for carrying slurry, mortar, daily sanitary wastewater and sewage containing flocks, papers, mud and sand and other solid particles.Also fit for dredging.
1) Automatic running
2) Excellent cutting performance
3) Overheating protection
SPECIFICATIONS | ||||
Main Performance Parameters | Max.flow | 22 m3/h | ||
Max.head | 20 m | |||
Motor | Style | Asynchronous AC motor | ||
Input Voltage | 220-240 V | |||
Input Power | 2000 KW | |||
Rotating Speed | 2900 r/min | |||
Wet-end | Material of Impeller | Cast Iron | ||
Material of Cutting device | SUS440C | |||
Material of Shaft | SUS304 for wet-end | |||
Mechanical Seal | Carbon-Silicon carbide | |||
Liquid PH | 4-10 | |||
Max. Immersion Depth | 7m | |||
Max. Liquid Temperature | 40 ℃ | |||
Max. Ambient Temperature | 0-40℃ | |||
Coil Winding: 100% copper
Motor Sleeve: SUS304 stainless steel, Thickness:2.0mm
Bolts: SUS304 stainless steel
The luster of stainless steel gives the product a beautiful appearance. The excellent corrosion resistance of stainless steel makes the pump suitable for liquids with different pH.
The reliable sealing structure guarantees the stability of the pump for long periods of time in the liquid.
Oil Chamber: Keep the inner mechanical seal work in a oily condition.Extends the service life of mechanical seals
Inner Mechanical Seal: Carbon-Ceramic
Outer Mechanical Seal: Silicon carbide -Ceramic
High-quality mechanical seals and double-protected structural design, so that the motor will never burn due to water ingress
Material: SUS440C
The cutting device is designed with the material of advanced cutting tools, so that the pump has excellent cutting performance, so that it will never be damaged by the impeller jamming.
Packaging | ||
Size | 54(L) * 27 (W) * 18 (D)CM | |
Weight | 27 KGS | |
Packaging Details | The normal package is honeycomb carton. | |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to install the pump, training how to use the pump.
* Technology support.
* Spare parts service.
* Warranty for 13 Months.
