Name: energy & Mud Mining Pump Spare Parts EMSCO Mud Pump Piston
Brand: energy & Mud Mining Pump Spare Parts EMSCO Mud Pump Piston
SKU: According to mud pump model
Price: 1 USD
Availability: InStock
Rating: 4.5 (173 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Condition: New

Warranty: Unavailable

Applicable Industries: Energy & Mining

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 300h

Core Components: mud pump piston

Type: mud pump piston

Model Number: According to mud pump model

Name: mud pump piston

Material: steel 45# or 40Cr+rubber

Temperature Resistance: up to 300(150â„ƒ)

service life: â‰¥ 300h

Available in size: 4", 4.5", 5". 5.5". 6". 6.25", 6.5", 6.75", 7"

Advantage: high resistance to water, oil and synthetic based drilling fluids

Type 1: Bonded urethane piston

Type 2: replaceable urethane piston

Type 3: replaceable rubber piston

Available pump brands: BOMCO, EMSCO, NATIONAL, OILWELL, IDECO, etc.

Local ServiceÂ Location: None

Основная информация

Model Number: According to mud pump model

Оплата и доставка Условия

Packaging Details: Plywood wooden box

Supply Ability: 20000 Piece/Pieces per Month

Характер продукции

Product Description

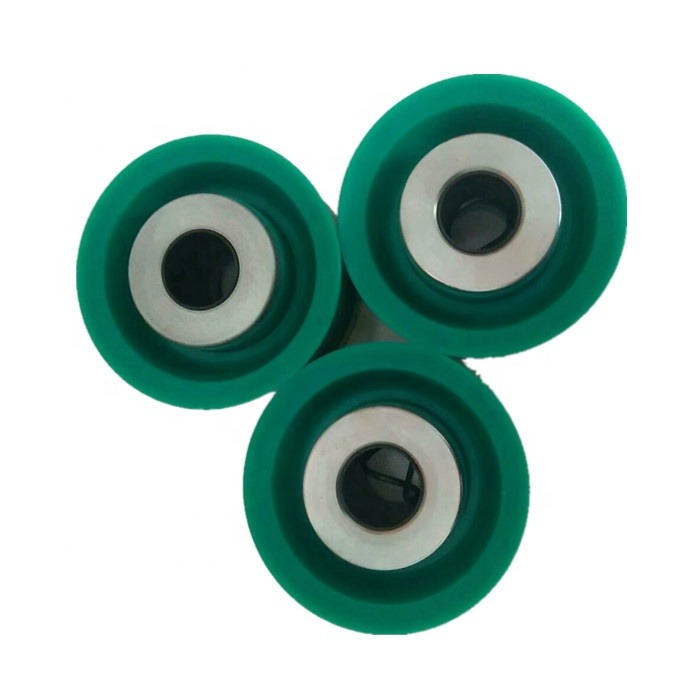

Piston assembly is the major part of the mud pump fluid end. The discharge pressure of mud pump is generated by the up-and-down motion of the piston in the cylinder. The pistons are manufactured from a specially engineered urethane compound that provides superior resistance to water, oil and synthetic based drilling fluids. The compound also provides superior resistance to tear, abrasion and extrusion and is capable of operating in fluid temperatures up to 300°F (150˚C).

Small piston—high pressure and low flow rate.

Big piston—low pressure and high flow rate. Metric pump and inch pump adopts metric piston and inch piston respectively.

Advantage

• Extra strong sealing area increases run times even at pressures up to 7500 psi

• Reduced maintenance Reduced operational costs

• Specially engineered Urethane compound, provides: high resistance to water, oil and synthetic based drilling fluids

• Temperature Resistance up to 300(150˚C) • Superior resistance to tear, abrasion and extrusion

• Available in size 4”, 4.5”, 5”. 5.5”. 6”. 6.25”, 6.5”, 6.75”, 7”

• Well-designed piston body for strong bonding with urethane and reduced weight

• Bonded design prevents fluid migration and abrasion between liner body and Pistons

Details Images

Avaliable mud pump models

BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600L	F-2200L
LANSHI	F-500	F-800	F-1000	F-1300	F-1600/F-1600L	F-1600H
		3NB500C	3NB1000C	3NB1300C	3NB1600
		P-800	P-1000	P-1300	P-1600	P-2200
HONGHUA	HHF-500	HHF-800	HHF-1000	HHF-1300	HHF-1600	HHF-1600HL	HHF-2200HL
RONGSHENG (RS)	RSF-500	RSF-800	RSF-1000	RSF-1300	RSF-1300L	RSF-1600	RSF-1600HL
RG	RGF-500	RGF-800	RGF-1000	RGF-1300	RGF-1600
QINGZHOU (QZ)	QZF-500	QZF-800	QZF-1000	QZF-1300	QZF-1600
	QZ3NB-800	QZ3NB-1000	QZ3NB-1300	QZ3NB-1300A	QZ3NB-1600
RONGLI (RL)	RL-F500	RL-F800	RL-F1000	RL-F1300	RL-F1600	RL-F2200
RONGLI (RL)		RL-3NB350	RL-3NB500(A)	RL-3NB600	RL-3NB800	RL-3NB1000(A/D)	RL-3NB1300(A/D)	RL-3NB1600
TSC	WF-400	WF-450	WF-700	WF-1000	WF-1600
EMSCO	F-350/500	F-650	F-800	F-1000	F-1300	F-1600
EMSCO		FA 1300	FB-1300	FA-1600	FB-1600	DB-550	D-300	D-700
NATIONAL	8-P-80	9-P-100	10-P-130	12-P-160	14-P-220
OILWELL	A-600-PT	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
OILWELL		A-350	A-560	A-650	A-850	A-1100	A-1400	A-1700
IDECO	T-500	T-800	T-1000	T-1300	T-1600
WIRTH	TPK-1000	TPK-1300	TPK-1600	TPK-2000	TPK-2200
ELLS WILLIAMS	E-447	E-2200	W440	W446
GARDNER DENVER	PZ-7	PZ-8	PZ-9	PZ-10	PZ-11	PZ-L	PA-8
GARDNER DENVER		FY-FXD	FO-FXO	FD-FXX	FG-GXG
RUSSIA PUMPS	UNBT 650	UNBT 950	UNBT 1180L	UNB 600	NBT 600	ETC.

Our Services & Strength

XRR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.

XRR has a skilled and experienced after sales team geared up for fast response and superior services to our customers at any time. Our Long distance monitoring center is equipped to monitor, diagnose, serve and manage the units delivered. XRR also provides technical training to our customers at regular intervals.

FAQ

1. Are the pistons in stock?

A: Some are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?

A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the pistons according to my requirements?

A: Yes, we can produce pistons as per your requirements, but all need to be discussed before signing the contract.

5. Can we visit your company before placing order?

Welcome to our company any time you like.
