Name: Horizontal Sewage Filter Suction Sludge Dredge Mud Pump For Sale
Brand: Horizontal Sewage Filter Suction Sludge Dredge Mud Pump For Sale
SKU: 6x4D-MAH
Price: 1 USD
Availability: InStock
Rating: 4.5 (111 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: 6x4D-MAH

Pressure: High Pressure

Structure: Single-stage Pump

Usage: Water

Application: Sewage, Mining, Mineral sand, Oil and gas, Construction and agriculture

Power: Electric

Theory: Centrifugal Pump

Standard or Nonstandard: Standard

Flow rate: 20-800m3/h

Head: 5-70m

Lubrication: Grease and Oil

Surface treatment: Anti-corrosion painted

Material: Cr27, Cr15Mo3

Sealing: Gland packing

Certificate: CE, ISO9001

Fuel: electric

Основная информация

Сертификация: CE, ISO9001

Model Number: 6x4D-MAH

Оплата и доставка Условия

Packaging Details: horizontal filter suction sludge dredge slurry pump for sale 1. Standard ply wood case. 2. As your customer's requirements.

Supply Ability: 600 Set/Sets per Quarter horizontal filter suction sludge dredge slurry pump

Характер продукции

Horizontal filter suction sludge dredge slurry pump for sale

Product Description

Horizontal filter suction sludge dredge slurry pump for sale

Milestone MAH series slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.
MAH high density slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 6500 m³/hour and heads up to 125 meters for high head models.
All our slurry pumps are designed to be 100% fully interchangeable with the most common slurry pump used by the mining industry.

Pump Features

1) Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.

2) Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.

3) Casing – casing halves of cast or ductile iron provide high operating pressure capabilities.

4) Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

5) Throat bush – wear is reduced and maintenance simplified by the use of tapered.

No.	Name	No.	Name
1	Round nut	12	Impeller
2	Labyrinth	13	Volute
3	Bearing	14	Cover plate
4	End cover	15	Intake joint
5	Shaft sleeve	16	Expeller
6	Oil cup	17	Packing
7	Discharge joint	18	Lantern ring
8	Frame plate	19	Gland assembly
9	Oil cup seat	20	Frame
10	Expeller ring	21	Grease retainer
11	FPL insert	22	Shaft

Curves and dimension

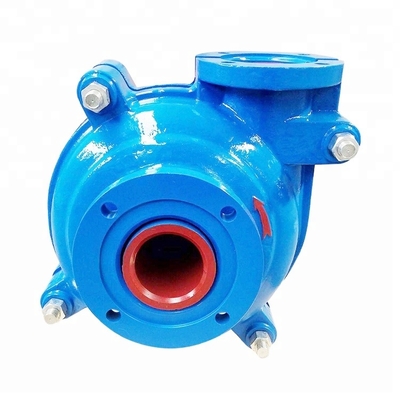

Pump show

Horizontal Sewage Filter Suction Sludge Dredge Mud Pump For Sale

Horizontal filter suction sludge dredge slurry pump for sale
