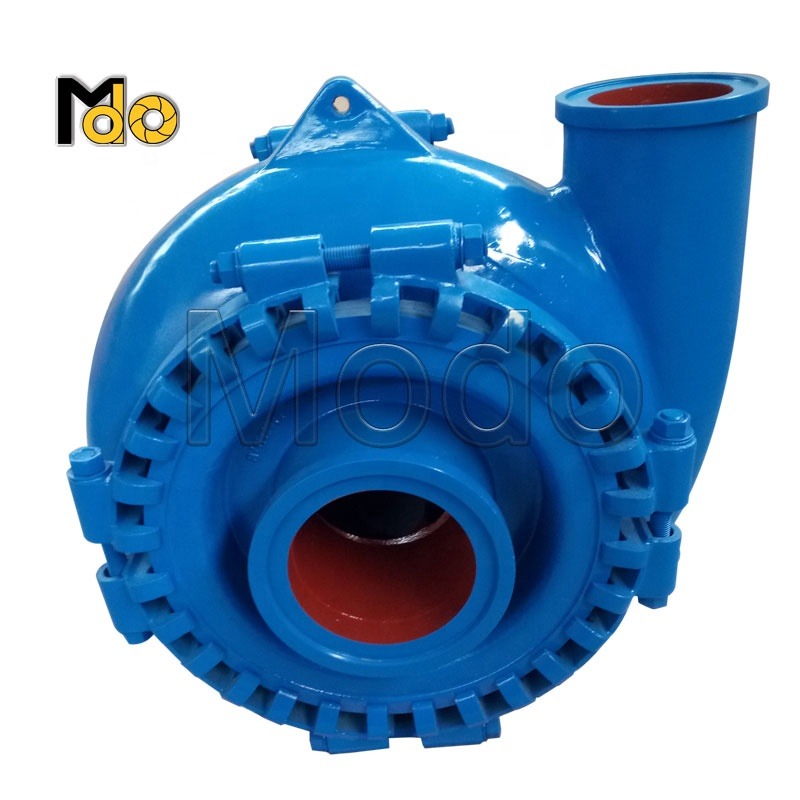

Name: Surface Mud Machining Gravel Sand Dredge Mud Pump
Brand: Surface Mud Machining Gravel Sand Dredge Mud Pump
SKU: 8/6E-MG, Gravel pump
Price: 1 USD
Availability: InStock
Rating: 4.7 (192 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Warranty: 1 year

Customized support: OEM, ODM

Model Number: 8/6E-MG

Application: Machining, Metal and Equipment Manufacturers, Mining industry, Mining

Horsepower: As customer request

Power Source: Electric, Pneumatic

Pressure: As customer request

Structure: Single-stage Pump

Cable Length: /

Outlet Size: As customer request

Voltage: 400V

Power: As customer request, Electric

Fuel: Diesel

Pump Capacity: 126-594m3/hr

Head: 9-48m

Pump Casing: Cast iron

Wet ends: Cr27 (high chrome)

Shaft: 40Cr

Shaft seal: Gland packing/mechanical seal

Pump Model: Gravel pump

Сертификация: ce

Основная информация

Сертификация: ce

Model Number: 8/6E-MG, Gravel pump

Оплата и доставка Условия

Packaging Details: surface mud gravel sand dredge sludge pump for sale Plywood cases/ as customer required

Характер продукции

surface mud gravel sand dredge sludge pump

Pump Specifications

Pump specification		Motor specification
Capacity	126-594m3/hr	Power	/
Head	9-48m	Speed	/
Speed	/	Volts	/
Inlet/Outlet	200mm/150mm	Frequency	/
Efficiency	/	Protection grade	/
NPSHr	/	Insulation class	/

Material List
Casing	Cast iron	Shaft	40Cr
Wet ends	Cr27 (high chrome)	Shaft seal	Gland packing/mechanical seal

Related Products

Gravel sand suction pump can provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.It is the world's standard for the most difficult mill duties.The G-type series pump can be supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.

Features

1 Bearing assembly:large diameter shaft with short overhang contributes to long bearing life;

2 Liners:Easily replaceable liners are bolted, not glued to the casing for positive maintenance;

3 Casing:Casing halves of cast or ductile iron provide high operating pressure capabilities;

4 Impeller:Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination;

5 Throatbush:Wear is reduced and maintenance simplified by the use of tapered.

Selection Chart

MG Clean Water Performance
Type	Allowable Mating Max.Power	Flow	Head	Max Eff	NPSH	Interrupted by the maximum particle
Type	kw	m3/h	m	%	m	mm
6x4D-MG	60	2.2-23.3	3-54	58	2.5-3.5	82
8x6E-MG	120	4.2-55.6	6-52	60	3-4.5	127
10x8F-MG	260	16.7-77.8	10-54	65	3-7.5	178
12x10G-MG	600	12.5-122.2	10-60	65	1.5-4.5	220
14x12G-MG	600	2.8-20	8-72	68	2-8	241
18x16G	600	13.9-333.3	8-50	72	3-6	254

Application

Sand and Gravel
Hydraulic Mining
Water treatment plants
Sugar beet & other root vegetables

Chemical / Processing

Slag Granulation

Tunnellin

Company Information

About Us

Optimisation, Innovation and Excellence, are the three words which most immediately characteristics.

We “Modo Pump” have been offering high end Industrial Centrifugal Pump.Today,we are counted among the key manufacturers, Suppliers and Exporters of kinds of Centrifugal slurry pumps. We have been using high quality raw material in the production sourced from the chief vendors. To cater to the varied necessities of the valuable clients, we have been providing this array of pumps in wide-ranging sizes and specifications. All our products are widely reckoned in the market for durability, performance and working efficiency.

FAQ

1. What is your product range?

Slurry pumps(Horizontal, vertical, submersible type.)

Water pumps(Multistage, end suction, double suction)

2. What information I need to offer for quotation?

Liquid:___ Pump Capacity___m3/h

PH:_____ Pump Head: ___m

Specific of gravity___ Voltage ___V Frequency ___Hz

3. Do you only supply pumps? Could you supply driven equipment?

Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference:

Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands

Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.

4. What is your MOQ?

We value every client, no matter pump or spare parts, one set or one piece, we treat the same with 100sets.

5. Is OEM parts available ?

Yes, please send me the detailed drawing. Different materials is available.
